Home Commercial Door Operators Jackshaft with Hoist

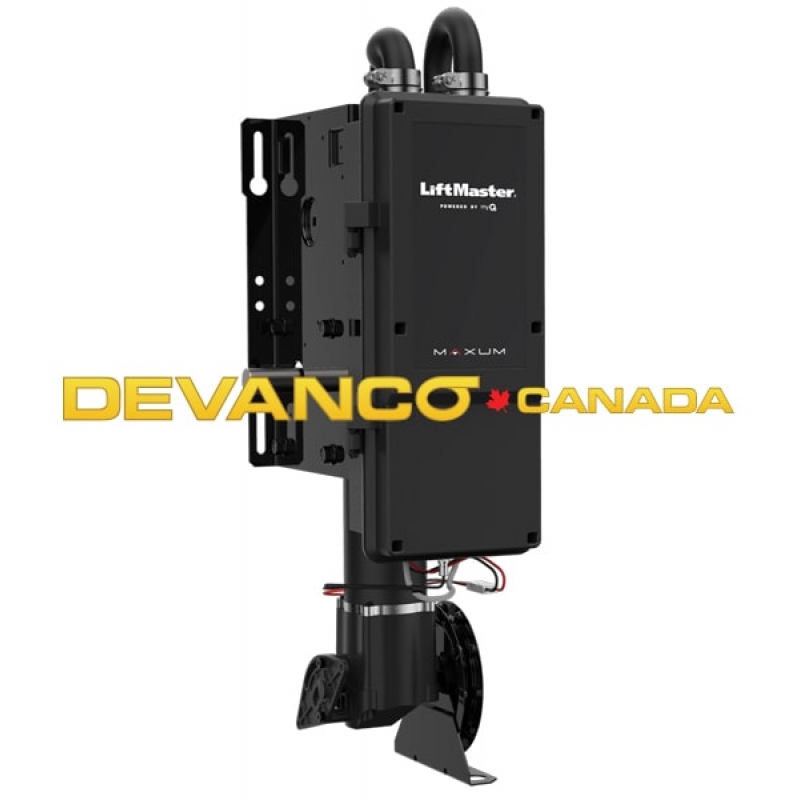

JHDC7S1BMC

LiftMaster MAXUM Jackshaft 1/2HP 120/240V 1PH Equivalent DC Operator Std Cycles 700LB

  • New DC high-efficiency motor and gearbox provides the power needed and smooth start and stop to reduce wear-and-tear on your door and operator
  • Average of 12” per second opening on sectional doors and 8-9” per second on rolling steel doors
  • Provides seamless operation by supplying standby power when the power is down (battery backup kit sold separately)
  • Listed to ANSI/CAN/UL325 Standard for USA/Canada
  • Drive Type 65:1 Gearbox with #50 Chain Output
  • Radio Receiver DC Logic 1.0 board with Security+ 2.0® rolling code technology remote controls and binary DIP switch remote controls
    • .......more details
JHDC_Installation-manualJHDC_Manuel-installationData sheetFiche techniqueQuick connect guideGuide de connexion rapideOrdering guideSprocket recommendations

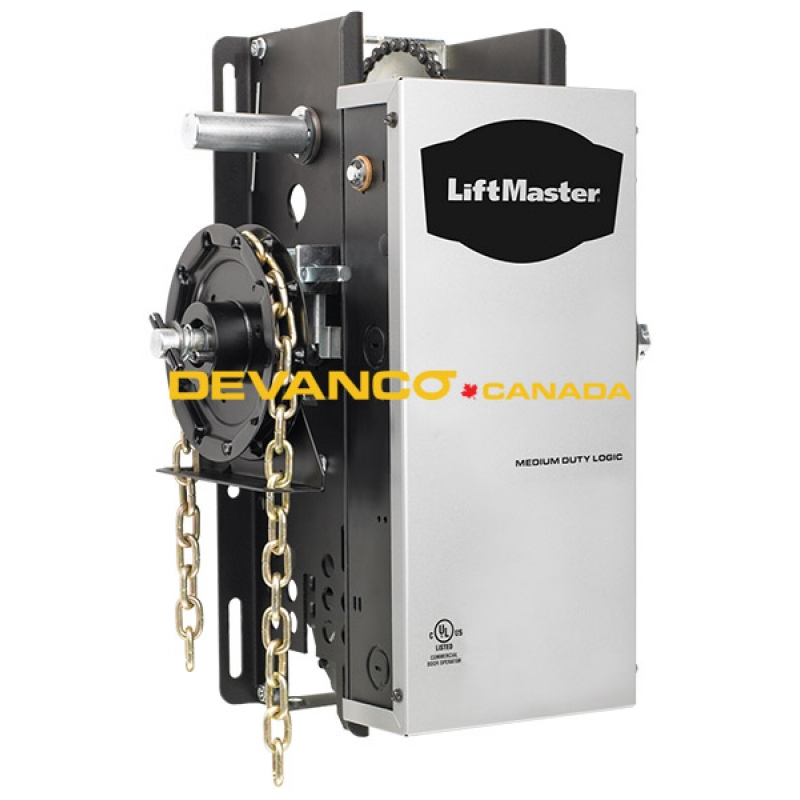

MH5011U-RH

LiftMaster 1/2 HP 120 Volt Medium Duty Jackshaft Operator

  • 1/2 HP 115 volt 1 phase medium-duty hoist operator
  • Logic board with integral 315 MHz radio receiver for Open/Close or Open/Stop/Close
  • CPSU commercial photoeyes included ( Nema 4 optional)
  • 4L V-Belt #48 drive chain adjustable friction clutch
  • Emergency disconnect and chain hoist standard
  • Solenoid actuated disc brake
    • .......more details
Installation ManualManuel d'installationMH Sell SheetMH Shop Drawing
MH5011U-LH

LiftMaster 1/2 HP 120 Volt Medium Duty Jackshaft Operator

  • 1/2 HP 120 volt 1 phase medium-duty hoist operator Logic board with integral 315 MHz radio receiver for Open/Close or Open/Stop/Close
  • CPSU commercial photoeyes included ( Nema 4 optional)
  • 4L V-Belt #48 drive chain adjustable friction clutch
  • Emergency disconnect and chain hoist standard
  • Solenoid actuated disc brake
  • Door speed approximately 8" to 12" per second
    • .......more details
Installation ManualManuel d'installationMH Sell SheetMH Shop Drawing
JHDC12S1BMC

LiftMaster MAXUM Jackshaft 3/4HP 120/240V 1PH Equivalent DC Operator 30 Cycles/Hour 1200LB

  • New DC high-efficiency motor and gearbox provides the power needed and smooth start and stop to reduce wear-and-tear on your door and operator
  • Average of 12” per second opening on sectional doors and 8-9” per second on rolling steel doors
  • Provides seamless operation by supplying standby power when the power is down (battery backup kit sold separately)
  • Listed to ANSI/CAN/UL325 Standard for USA/Canada
  • Drive Type 65:1 Gearbox with #50 Chain Output
  • Radio Receiver DC Logic 1.0 board with Security+ 2.0® rolling code technology remote controls and binary DIP switch remote controls
    • .......more details
JHDC_Installation-manualJHDC_Manuel-installationData sheetFiche techniqueQuick connect guideGuide de connexion rapideOrdering guideSprocket recommendations
